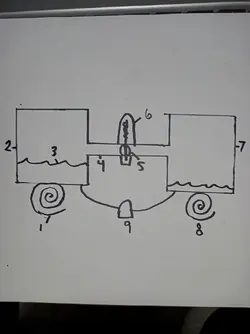

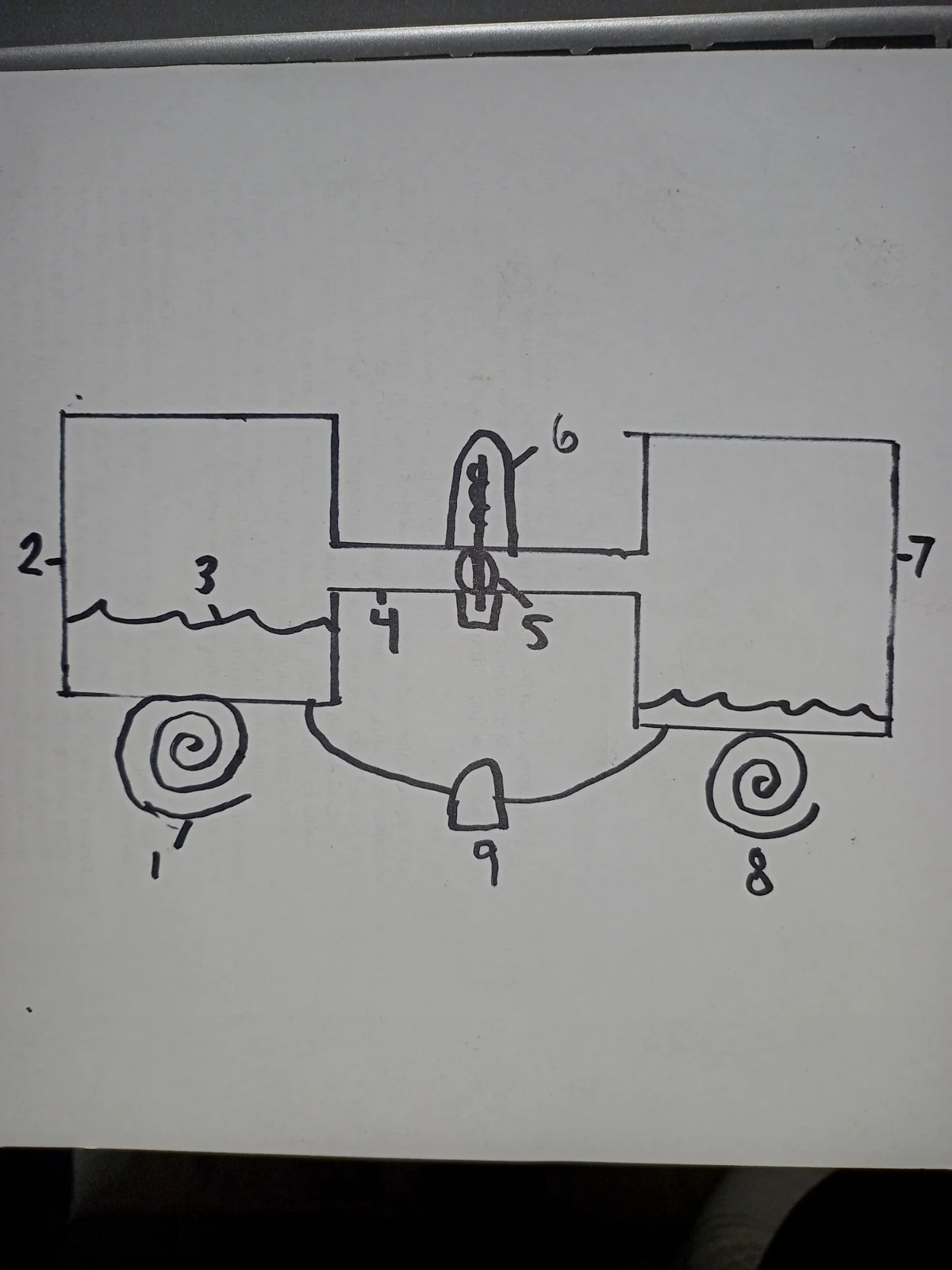

heat from refrigerant at 1 heats the box at 2 boiling the working fluids at 3. The gas then enters the pipe at 4 spinning the turbine at 5 with the enclosed generator on top at 6. The gas enters the box at 7, is cooled by the same refrigerant as before at 8, turns back into a liquid and is pumped at 9 back into box 2. The whole system being enclosed enables the use of a vacuum to set the boiling point of the working fluid, as well as enable the use of different fluids with optimal boiling points.
