homemade tin foil guitar effects

[trevorjohnson83]

can you explain how to make an oscillator/effects for a guitar using home made parts like the tin foil capacitor

ChatGPT said:​

Absolutely — that’s a great DIY electronics direction to explore!
You can make a simple guitar effects circuit (like a fuzz, tremolo, or oscillator) using homemade components — including tinfoil capacitors — if you understand a few basic principles of analog audio electronics.

Let’s go through it carefully, step-by-step.

---

1.​

Different effects have different core behaviors:

• Distortion/Fuzz: Boosts and clips the signal (using transistors or diodes).
• Tremolo: Modulates volume with an oscillator.
• Phaser/Flanger: Uses phase-shifting through capacitors and resistors.
• Oscillator: Generates tones that can mix with the guitar signal for weird synth-like effects.

Since you mentioned an oscillator/effects combo and homemade parts, we can make something simple:
a modulated fuzz/oscillator using basic passive parts and a transistor.

---

2.​

A capacitor stores electrical charge and affects how signals pass through — especially high vs. low frequencies.

You can make one easily:

Materials

• Aluminum foil
• Plastic wrap or thin paper (as dielectric)
• Tape

Steps

1. Cut two pieces of aluminum foil of equal size (say 2×3 inches).
2. Sandwich them between a layer of plastic wrap — make sure they don’t touch!
3. Tape around the edges to seal it.
4. Attach wires (with clips or soldered tabs) to each foil sheet.
5. The capacitance depends on:

   • Surface area of foil (bigger = more capacitance)
   • Thickness/type of dielectric (thinner = more capacitance)
   • Dielectric constant of the material

For guitar circuits, 0.01 µF to 0.1 µF is a good range for tone and oscillation filters. You can test by ear — larger values smooth and lower frequencies, smaller ones make sharper high-pitch effects.

---

3.​

Here’s the general layout (you can breadboard or solder it):


<span><span>Guitar In ── C1 ──┬─&gt; </span><span><span>B</span></span><span> NPN Transistor (e.g., </span><span><span>2</span></span><span>N2222 or BC547)<br> │<br> R1<br> │<br> GND<br><br>Emitter → GND<br>Collector → R2 → +</span><span><span>9</span></span><span>V<br>Collector → Output (through C2)<br></span></span>

Add Oscillator Modulation​

You can connect a variable capacitor (your tinfoil one) or potentiometer between the base and collector to create feedback — this makes it oscillate or “scream” like a synth when you adjust it.

If you put another homemade capacitor and resistor in a feedback loop, it will generate pulsing (tremolo-like) modulations.

Optional tweak: put a small diode pair across base and emitter (e.g., 1N4148 or germanium diodes) for a softer fuzz clip.

---

4.​

• Use a 9V battery, not wall power.
• Always include a 100Ω resistor in series with the power lead at first, to avoid shorts.
• Ground everything to a common point (the metal casing or a shared wire).

---

5.​

Try:

• Replacing C1 or C2 with your homemade foil capacitors to hear tonal differences.
• Touching the foil slightly — your finger’s capacitance will change the tone dynamically.
• Linking two circuits with shared feedback to make it warble or self-oscillate.

---

6.​

• The transistor amplifies the guitar signal.
• Feedback (through resistor and capacitor paths) makes the system unstable enough to oscillate.
• Your tinfoil capacitor shifts the frequency of that oscillation.
• You end up with growling, siren-like, or tremolo textures depending on tuning.



[scruffy]

The word you're looking for is "theremin".

Google is your friend.



[JGalt]

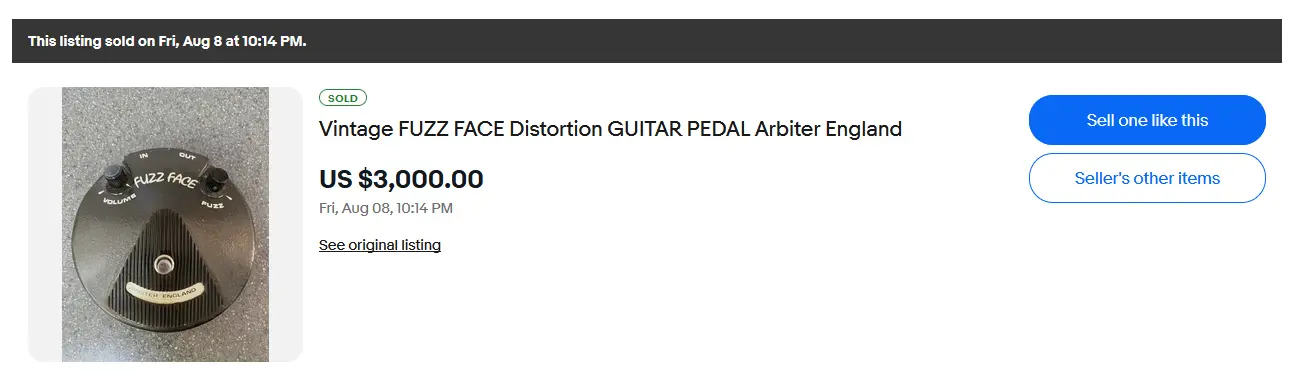

Why go through that much trouble when you can just buy one for $3,000?



[Muhammed]

The capacitors in FX pedals are not expensive. So I don't see making your own capacitors as being very practical.

But if you were stranded on a deserted island with limited resources....



[trevorjohnson83]

scruffy spent all last night and today working with AI to build an oscilator with my kit I have. Put the inductor and capacitor in just about every setup I could imagine with a speaker and stereo signal, I could make the music quieter in one setup by connecting the transistor base to the inductor, the speaker would get quieter when it was oscillating. what do you suggest?



[trevorjohnson83]

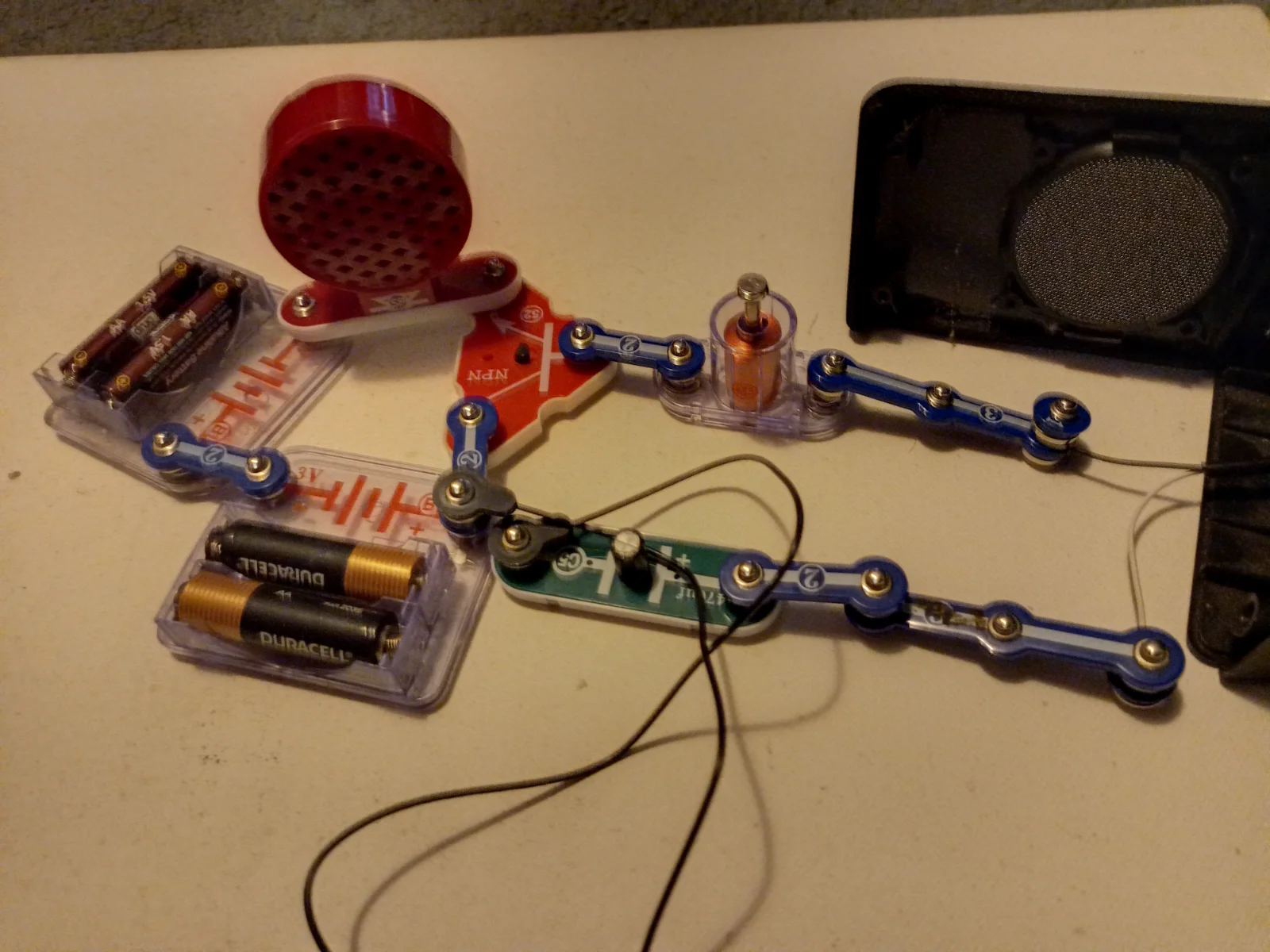

here is my oscillator circuit. To the right is a black speaker with two wires coming from it. The top wire is attached to the inductor which is connected to the base of the red transistor. The bottom wire is connected to a capacitor which is connected to the collector side of the transistor, the emitter side is the little red speaker. The capacitor and inductor in this circuit created good distortion.



[Chuz Life]

here is my oscillator circuit. To the right is a black speaker with two wires coming from it. The top wire is attached to the inductor which is connected to the base of the red transistor. The bottom wire is connected to a capacitor which is connected to the collector side of the transistor, the emitter side is the little red speaker. The capacitor and inductor in this circuit created good distortion.


View attachment 1172398



[Orangecat]

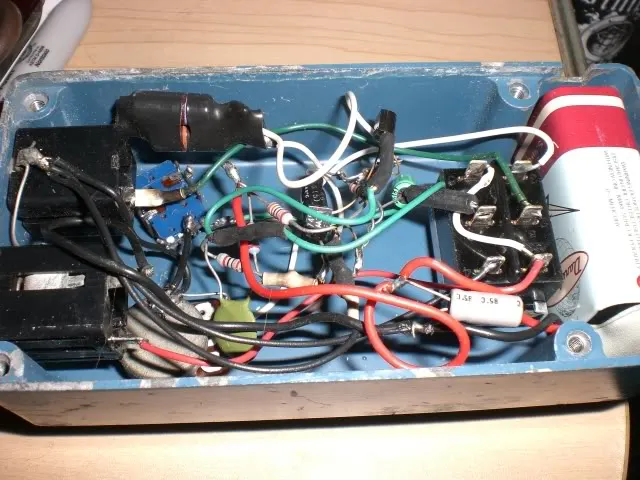

Here's mine:

Actually sold a couple to John Kuker, Semisonic "Closing Time" producer/engineer.



[Chuz Life]

Here's mine:

View attachment 1172427

Actually sold a couple to John Kuker, Semisonic "Closing Time" producer/engineer.

LOL, it took me a while to find that one transistor! I wondered at first what the 9v battery was for.



[Orangecat]

LOL, it took me a while to find that one transistor! I wondered at first what the 9v battery was for.

It's really just a modified Diaz Texas Square Face fuzz.



[Chuz Life]

Here's mine:

View attachment 1172427

Actually sold a couple to John Kuker, Semisonic "Closing Time" producer/engineer.

Would like to see the schematic. I think I have all the parts to try it.



[Orangecat]

Would like to see the schematic. I think I have all the parts to try it.

It ain’t pretty, but have at it.



[trevorjohnson83]

here I've got the base of the red transistor creating a loop with 470 uf capacitor and the inductor which is the nail in the coil. When I pull the nail out you can here the effect it has on the music.



[scruffy]

Hi Trevor, interesting circuit you have there. Is it amplifying the signal (is it getting any louder)?

You have a "common collector" circuit, which is more or less the equivalent of a cathode follower in a tube amp. Same principle, it reduces the output impedance and puts the load in the emitter rather than the collector. The load is the little red speaker. It's very low impedance, just a few ohms.

Your music source is the black speaker on the right, and you're listening through the little red speaker?

If so, try connecting the çapacitor at the point between the battery and the speaker. (Which is really your "ground", or as close as it gets in this circuit).



[scruffy]

Oh - about the distortion -

The transistor in this circuit has no DC bias.

You will only hear the upper portion of the positive parts of the signal (which equates with distortion, it resembles the cold clipper in a tube amp insofar as it only processes half the signal).

The nail is acting as the "core" of the inductor. It probably has some iron content. If you take it out you get an "air core inductor", the inductance goes way down, suitable for radio frequencies but not audio



[trevorjohnson83]

Hi Trevor, interesting circuit you have there. Is it amplifying the signal (is it getting any louder)?

no the signal placed directly on the little red speaker is louder then the setup in the video. I also tried re-building the circuit different and the same with mixed results. If the music was loud, the inductor nail had no effect, if it was quiet and crackly the nail had more influence. So, and its really easy to rip apart and test new circuits with the snap circuits, I see the diagrams and pictures of wiring and wonder, having never worked with anything other then snap circuits, if that isn't an advantage to be able to re assemble like that? it reminds me of using computer paper instead of canvas to do abstract art cause you can produce and throw away a lot more.



[scruffy]

no the signal placed directly on the little red speaker is louder then the setup in the video. I also tried re-building the circuit different and the same with mixed results. If the music was loud, the inductor nail had no effect, if it was quiet and crackly the nail had more influence. So, and its really easy to rip apart and test new circuits with the snap circuits, I see the diagrams and pictures of wiring and wonder, having never worked with anything other then snap circuits, if that isn't an advantage to be able to re assemble like that? it reminds me of using computer paper instead of canvas to do abstract art cause you can produce and throw away a lot more.

Yes, bread boarding is fun.

Do you know about transistors?

The way you have the circuit hooked up, there's no "bias" on the base of the transistor. So it won't amplify.

Try this: reverse the input connections. Put the capacitor on the base of the transistor, and put the inductor on the battery. There should be zero difference in behavior this way, compared to your existing circuit.

But now you have a clean base, and you can put some positive voltage there. A common-collector circuit won't give you any gain anyway, but if you start this way you can do some other quick changes later.



[trevorjohnson83]

Same circuit



[scruffy]

Where did you get the snap stuff?

That's a cool way of experimenting.



[trevorjohnson83]

Where did you get the snap stuff?

That's a cool way of experimenting.

I just pull the parts out of the kits, Elenco snap circuits, all different kits you can buy.
