2.85 GHZ quad core CPU

[miketx]

My old computer died a while back and I was cleaning up my play room and found this. I took it off the dead mother board just to keep it. It's really amazing that this thing can do what it does, whatever it is that it does!



[Marion Morrison]

Ooook.



[miketx]

Ooook.

Que?



[waltky]

Is it Intel or AMD?



[miketx]

AMD.



[Marion Morrison]

What is it? Phenom IIx4 945?



[miketx]

What is it?

It is the Central Processing Unit (CPU) out of an HP Computer I had.



[Marion Morrison]

Phenom 2 x4 935.

Unless it's an Opteron.



[miketx]

No it dates from around 2007.



[leftwinger]

1024 pins or so? Each one of those connects into a unique circuit node. Many could be GND or Power Supply but many are 32/64 bit input/outpt address bus or address/mode select pins. 2007 is old, amazing it worked at all. Many pins could bu un-used, planning ahead ........ package ready for bigger better.



[MarathonMike]

Looks like an AMD pin out. Maybe this one:
Pins: 940 Layout: 31x31 mPGA Voltage: Auto VRM Supported Processors: AMD Athlon 64FX, Opteron Class: AMD K8



[Marion Morrison]

I give up, what is it? Early Phenom x4?

Most AMD chips in 2007 were 2-core, except Opterons and Phenom Is.



[miketx]

I give up, what is it? Early Phenom x4?

Most AMD chips in 2007 were 2-core, except Opterons and Phenom Is.

All I know is it was in my HP desktop and it's a 2.85 GHZ quad core processor. I just put it on here for people who may have never seen a CPU before. Maybe it was 2008, I can't recall.



[Moonglow]

My old computer died a while back and I was cleaning up my play room and found this. I took it off the dead mother board just to keep it. It's really amazing that this thing can do what it does, whatever it is that it does!

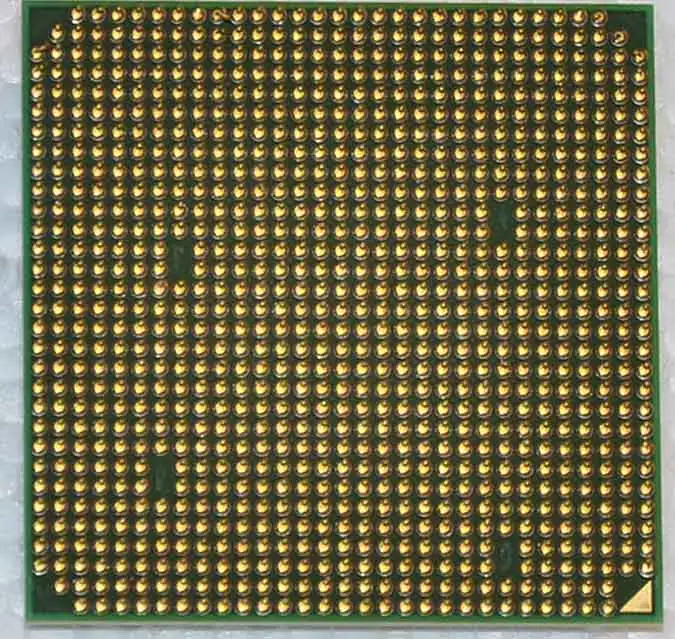

View attachment 168652

solder pins are amazing..



[Moonglow]

Yes I'm laughing at you..



[miketx]



[Marion Morrison]

I give up, what is it? Early Phenom x4?

Most AMD chips in 2007 were 2-core, except Opterons and Phenom Is.

All I know is it was in my HP desktop and it's a 2.85 GHZ quad core processor. I just put it on here for people who may have never seen a CPU before. Maybe it was 2008, I can't recall.

Maybe turn it over, clean it off, and read what it says?



[waltky]

MM wrote: Maybe turn it over, clean it off, and read what it says?

Oh! Ya can do dat?



[Marion Morrison]

I am not going to look at that pic and and count to see if it has 939 vs 940 pins.



[Bleipriester]

I give up, what is it? Early Phenom x4?

Most AMD chips in 2007 were 2-core, except Opterons and Phenom Is.

All I know is it was in my HP desktop and it's a 2.85 GHZ quad core processor. I just put it on here for people who may have never seen a CPU before. Maybe it was 2008, I can't recall.

When it is from 2007/2008, is AMD, has four cores and has 2,85 Ghz, it does not fit to any product line.

- Pins look like AMD, Intel didn´t use pins anymore.
- 2007/8 AMD Quad cores are Phenoms and go up to 2,6 Ghz.

So what stands on top of the CPU?
