122 Grain Cast Lead Round Nosed 9mm Bullets

JGalt

Platinum Member
Joined
Mar 9, 2011
Messages
28,947
Reaction score
9,040
Points
930
Location
SW Wisconsin
I cast up a couple hundred of these last week and got to work up a load today. They were cast out of 9 pounds of rendered wheel weights mixed with one pound of 50/50 lead/tin bars into a Lee TL356-124-2R mold. The bullets were water-quenched and the Brinell hardness measures out to be about 23. I pushed them with a starting load of 3.5 grains of HP-38 powder, and up to a maximum of 4.0 grains. They were loaded into Winchester cases trimmed down to 0.750", primed with Winchester WSP primers, and seated to an overall length of 1.164".

today shooting2.jpg


today shooting3.jpg


They were fired from a rest at targets set at a range of 25 yards, and the pistol was a 1951 Star Model B. 9mm on a 1911 frame. The results were as follows:

Charge grains: 3.5 3.6 3.7 3.8 3.9 4.0

900 958 1024 1011 1033 1040
910 944 972 1024 1038 1061
928 939 1011 1030 1095 1070
946 951 1013 1054 1038 1076
919 937 969 1049 1047 1063
947 955 1018 1024 1034 1061
941 963 999 1039 1034 1094
-------------------------------------------------------------------

Avg, Velocity fps: 927 950 1001 1033 1046 1066

Std. Dev: 18.4 9.86 22.10 15.2 22.3 16.5

The best group was with a powder charge of 3.9 grains. At that charge, the cases sealed fully in the chamber and no carbon residue was exhibited on the cases...





After firing seven round at each increment, I disassembled the pistol to check for barrel leading, with a USB bore scope. No leading was evident in the throat or muzzle...

today shooting4.jpg









These appear to work pretty well. I'll probably load up 300-400 rounds just to plink with sometime this week.


Attachments

Missourian

Platinum Member
Joined
Aug 30, 2008
Messages
21,080
Reaction score
7,293
Points
350
Location
Missouri

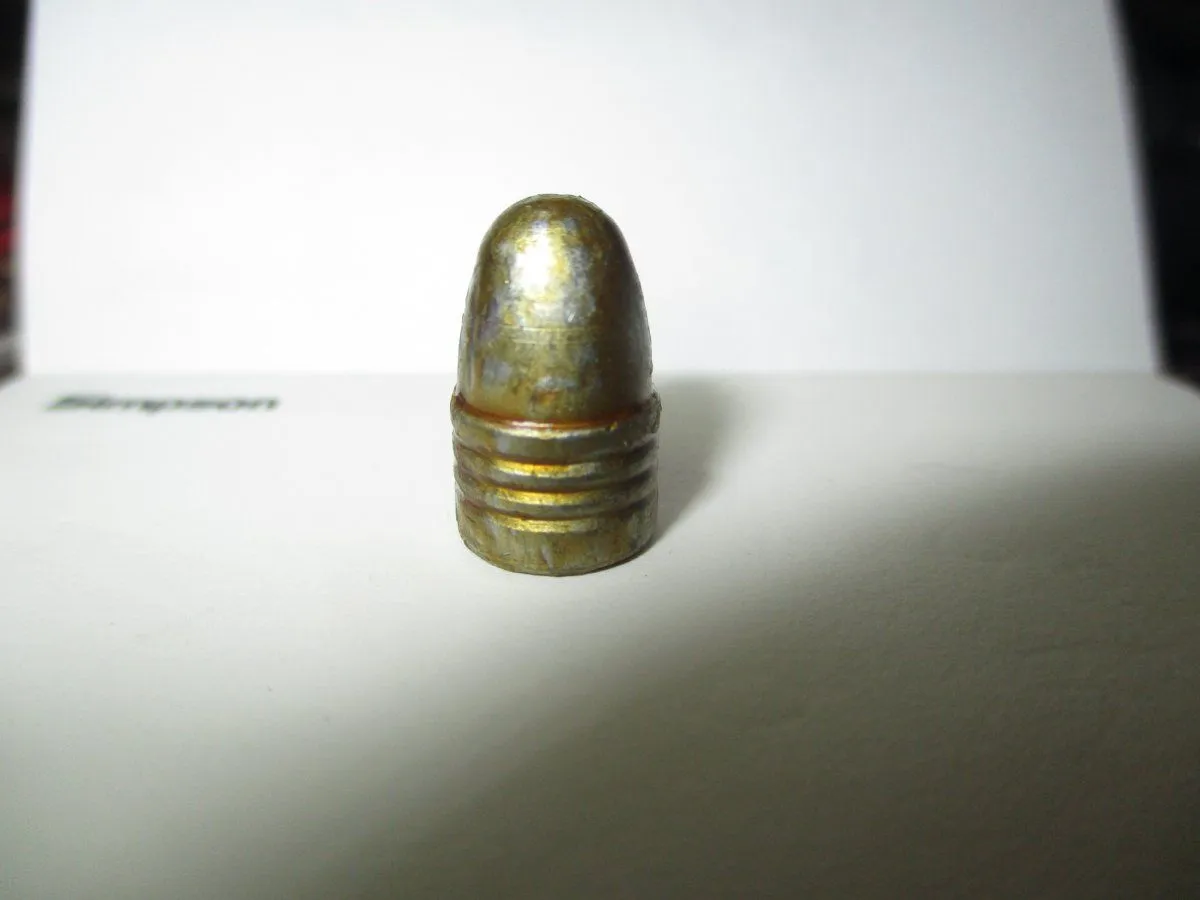

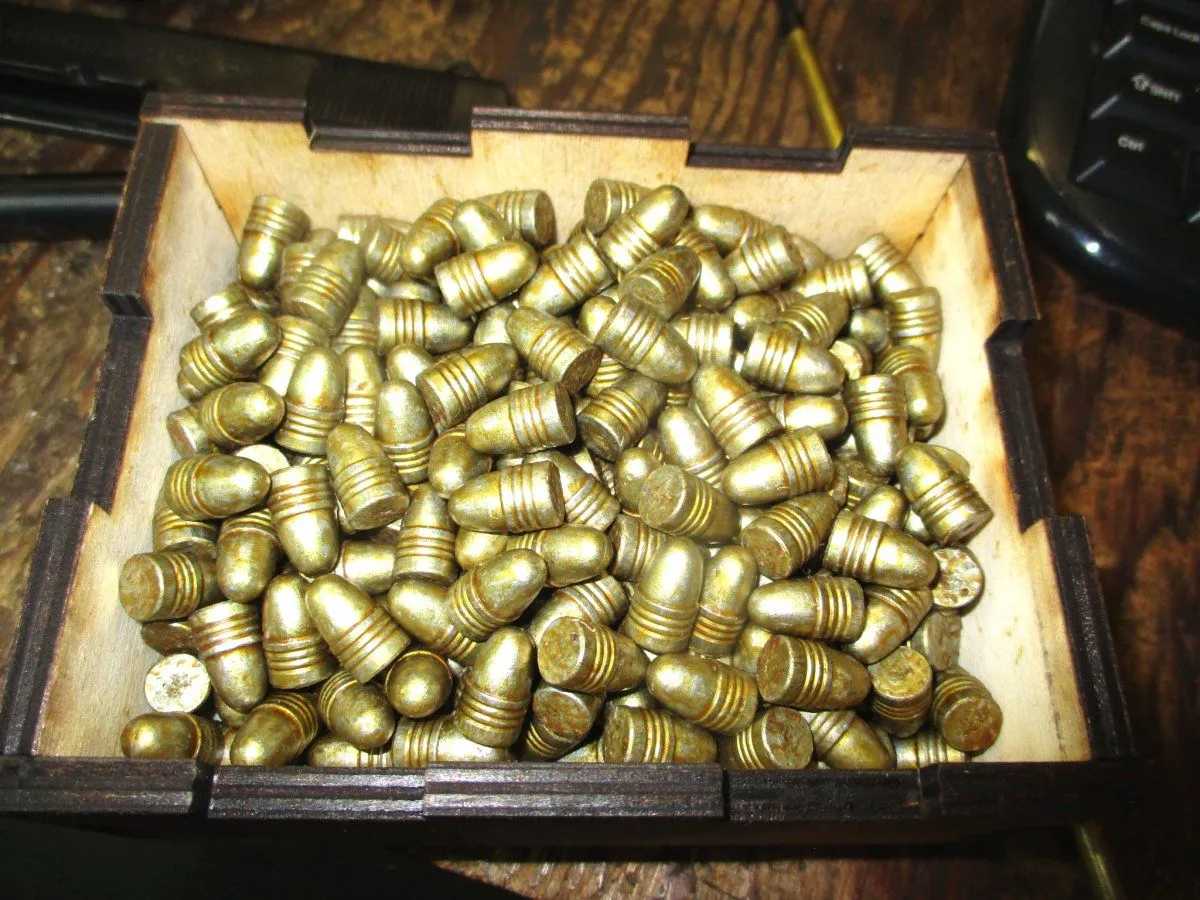

I cast up a couple hundred of these last week and got to work up a load today. They were cast out of 9 pounds of rendered wheel weights mixed with one pound of 50/50 lead/tin bars into a Lee TL356-124-2R mold. The bullets were water-quenched and the Brinell hardness measures out to be about 23. I pushed them with a starting load of 3.5 grains of HP-38 powder, and up to a maximum of 4.0 grains. They were loaded into Winchester cases trimmed down to 0.750", primed with Winchester WSP primers, and seated to an overall length of 1.164".

View attachment 337965

View attachment 337966

They were fired from a rest at targets set at a range of 25 yards, and the pistol was a 1951 Star Model B. 9mm on a 1911 frame. The results were as follows:

Charge grains: 3.5 3.6 3.7 3.8 3.9 4.0

900 958 1024 1011 1033 1040
910 944 972 1024 1038 1061
928 939 1011 1030 1095 1070
946 951 1013 1054 1038 1076
919 937 969 1049 1047 1063
947 955 1018 1024 1034 1061
941 963 999 1039 1034 1094
-------------------------------------------------------------------

Avg, Velocity fps: 927 950 1001 1033 1046 1066

Std. Dev: 18.4 9.86 22.10 15.2 22.3 16.5

The best group was with a powder charge of 3.9 grains. At that charge, the cases sealed fully in the chamber and no carbon residue was exhibited on the cases...



View attachment 337963

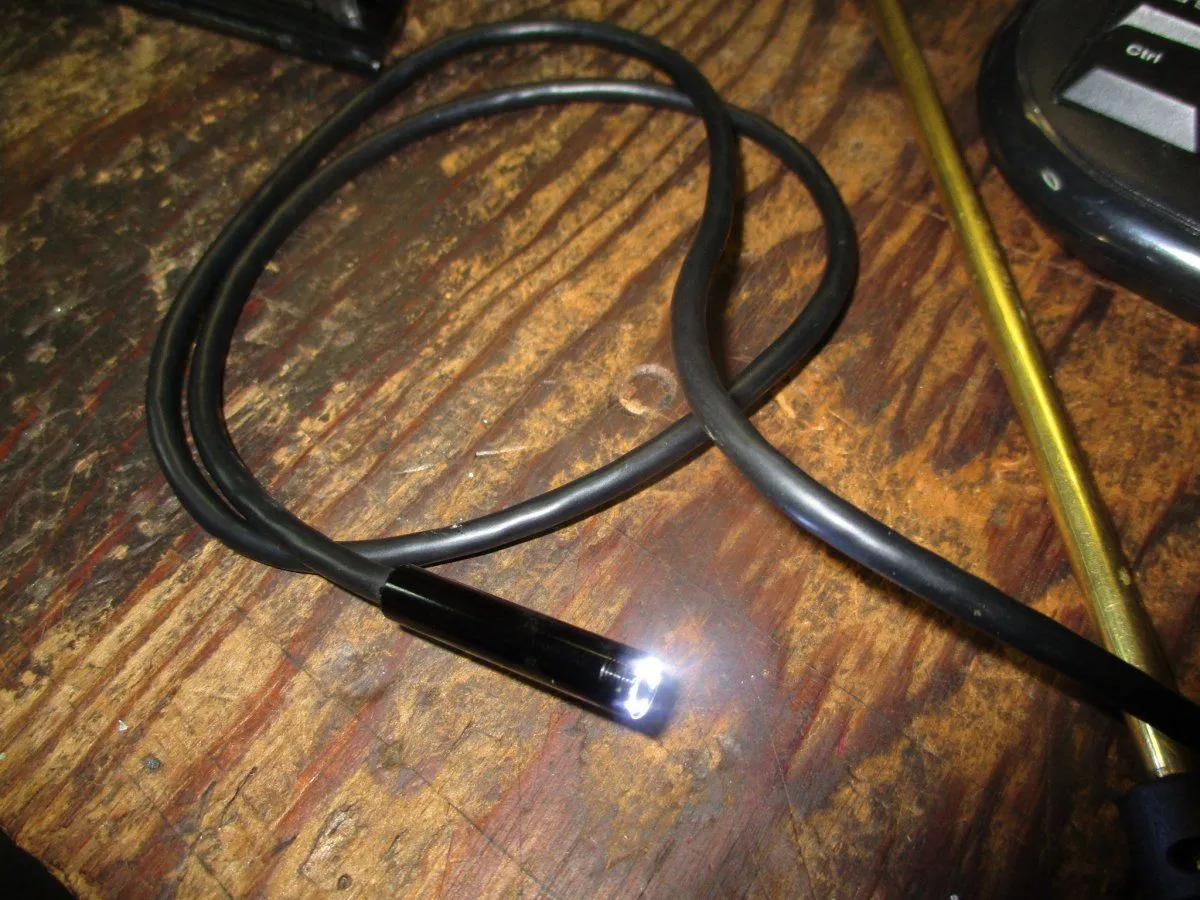

After firing seven round at each increment, I disassembled the pistol to check for barrel leading, with a USB bore scope. No leading was evident in the throat or muzzle...

View attachment 337971

View attachment 337973

View attachment 337981




These appear to work pretty well. I'll probably load up 300-400 rounds just to plink with sometime this week.
Stars are some of the most underrated handguns offered for sale. For the price IMO...you can't beat em.


SootedUpCyndi

Active Member
Joined
Apr 30, 2020
Messages
203
Reaction score
161
Points
43
What are those? My god. that's scary. you make those? LOL ha ha ha


harmonica

Gold Member
Joined
Sep 1, 2017
Messages
26,092
Reaction score
3,825
Points
290
..I just went to a range yesterday...my wife got me a gift card....I fired at 25 feet and 35 feet....at 35 feet, I could not see the impacts [ I guess my eyes have deteriorated ].....35 feet seemed like FAAAAR away ......the thing is, in the USMC, we used to also fire at 25 yards.....and I was one of the better shooters.....my eyes were ''better''
...yesterday, I was thinking ''DAMN'', 25 yards is far!!!!!''''

...what size is the black on that target?

....I think we also fired at 50 yards [ if my bad memory is correct ]---even though that was about the M1911A1's effective range.....we also fired the M16A1 at 500 yards--which was over it's effective range
